Yokogawa EJX530A High-performance Pressure Transmitter: Industrial Excellence for Critical Applications

The Yokogawa EJX530A High-performance Pressure Transmitter is a great choice for your business operations when you need to be exact and trustworthy in pressure measurements. This high-tech pressure sender uses a new single-crystal silicon resonant sensor to get very exact pressure readings for gases, liquids, and vapors. Its 4–20 mA DC current signal output, quick response, and full range of diagnostic features will help you make sure it works well in tough settings at petroleum, petrochemical, and power generation plants.

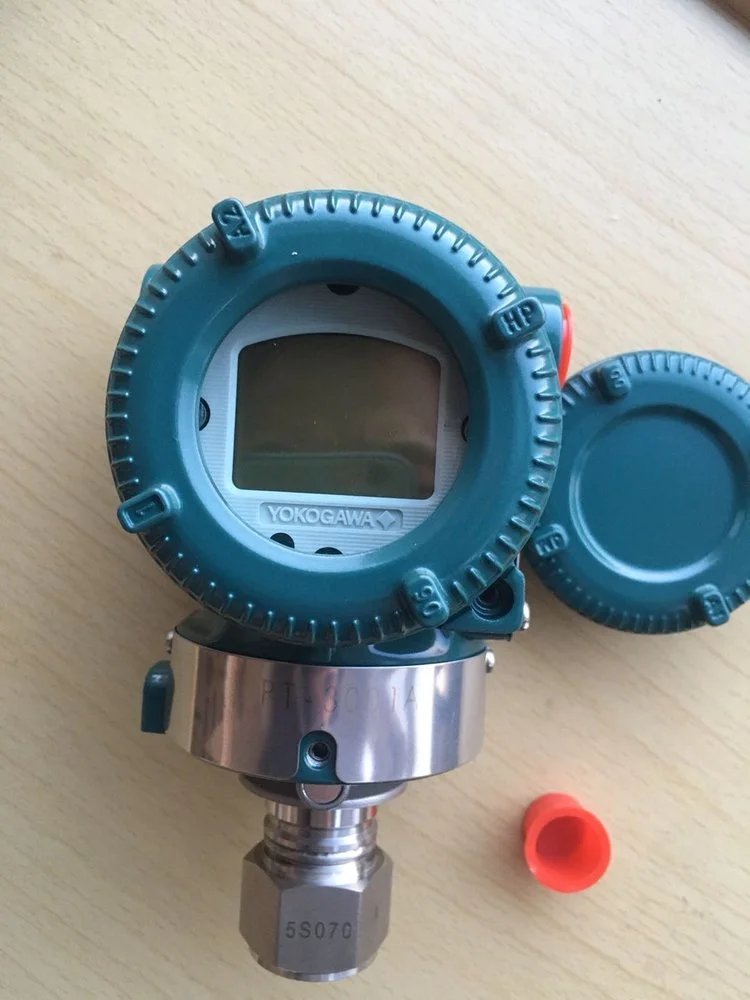

product-1-1

Key Features That Matter to Your Operations

Unmatched Precision and Reliability

Your process control demands accuracy you can trust. This pressure transmitter offers ±0.04% reference accuracy with remarkable ±0.1% URL stability over 15 years. The 90-millisecond response time ensures you capture even the fastest pressure changes in your system.

Superior Construction for Harsh Environments

You'll like the strong four-bolt pressure retention design that holds up under tough situations in the field. The transmitter has Teflon-coated 316L stainless steel flange seals and approved ANSI/ISA 12.27.01 double sealing technology. These parts of the design work together to make the tools last longer and need less upkeep.

Advanced DPharp Digital Sensor Technology

The new DPharp sensor can do real-time tracking because it keeps sending out frequency data. If there is a problem with the sensor, you will be notified right away. This way, you won't get confused between equipment problems and real changes in process pressure. This proactive method helps keep things running smoothly and safely.

Comprehensive Overpressure Protection

Your equipment investment stays protected through multiple safety layers. The DPharp sensor resists overpressure impacts, while internal mechanical design provides additional protection against valve operation errors and unexpected pressure surges.

Technical Specifications

Parameter	Specification
Measurement Type	Absolute pressure for liquids, gases, vapors
Reference Accuracy	±0.04%
Long-term Stability	±0.1% URL over 15 years
Response Time	90 milliseconds
Adjustable Ratio	Membrane box A: 25:1; B,C,D: 50:1
Burst Pressure	A,B,C: 4,350 psi (30 MPa); D: 19,100 psi (132 MPa)
Output Signal	4-20mA DC current
Safety Certification	SIL2 (single unit), SIL3 (redundant configuration)

Safety and Compliance Excellence

Through broad certificates, the safety needs of your building are met. The Yokogawa EJX530A High-performance Pressure Transmitter meets the IEC 61508:2010 and IEC 61511:2004 standards and reaches SIL2 safety requirements with placement of just one unit. For SIL3 uses, a redundant setup gives you the safety level you need.

TÜV Rheinland and EXIDA are independent companies that confirm the claims about speed and dependability. This verification helps you be sure you are choosing the right tools for very important uses.

Innovative Self-Diagnostic Capabilities

The patented Back-Check system performs continuous reverse calculations during signal transmission and conversion. You benefit from real-time verification of calculation accuracy and immediate detection of potential issues. This proactive monitoring approach minimizes unexpected downtime while maintaining measurement integrity.

Applications Across Industries

This versatile pressure transmitter serves multiple industrial sectors effectively:

Petroleum and Natural Gas: Accurate pressure monitoring in upstream, midstream, and downstream operations
Petrochemicals and Chemicals: Reliable measurement in corrosive and high-temperature environments
Power Generation: Critical pressure monitoring for steam systems and turbine operations
Process Manufacturing: Precise control for batch and continuous processes

Why Choose Shaanxi Honglixing Electronic Technology?

We offer full technical help and after-sales service because we are approved agents for top industrial names. Because we are experts in natural gas, gasoline, petrochemicals, and power production, you can be sure that you will get the best advice on how to choose and use our products.

We know how hard it can be to run a business, and we offer dependable industrial control options that meet tough standards. Our promise to make our customers happy guides all of our work, from the first meeting to long-term help.

Packaging and Shipping

Shanxi HLX electronic technology takes extraordinary consideration in bundling the product to guarantee that it arrives at our clients in amazing condition. We use industry-standard bundling materials and techniques to shield the gadget from likely harm during travel. We likewise offer various delivery choices to oblige your particular necessities and inclinations.

product-1-1

Contact Us

Ready to enhance your pressure measurement capabilities? Our technical specialists can help you determine if this Yokogawa EJX530A High-performance Pressure Transmitter meets your specific application requirements.

For detailed specifications, pricing, and technical consultation, contact us at sales01@hlx8.com.

We're here to support your industrial automation needs with proven expertise and reliable solutions.
