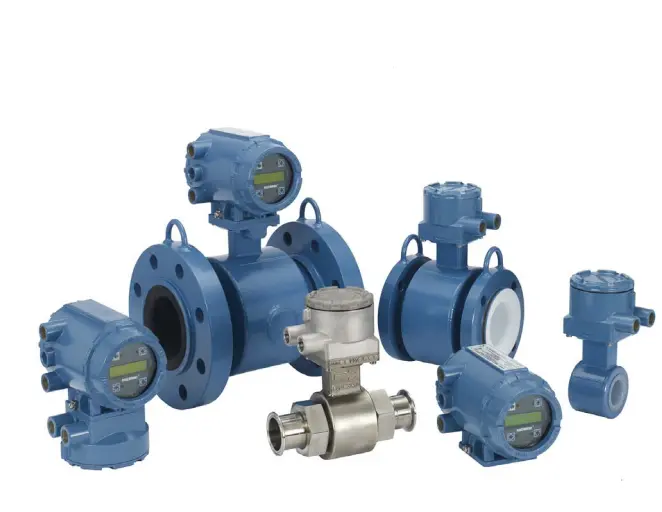

Rosemount 8721 Sanitary Electromagnetic Flowmeter Sensor

The Rosemount 8721 Sanitary electromagnetic flowmeter sensor works great because it is fully soldered and made of materials that the FDA approves. This modern monitor is accurate, hygienic, and durable, so it meets the highest health standards. This sensor will help you measure flow more easily, all while keeping safety and stability at the highest levels.

product-1-1

Key Features That Set This Sensor Apart

Superior Hygiene Standards

The best products are needed for your sanitary uses. All parts of this monitor are approved by the FDA. The design meets both 3-A and EHEDG standards, so you can be sure that you can use it in the most difficult food and drink processes.

The instrument body is fully welded, which gets rid of all the places where pollution could happen. There aren't any places for the germs to hide. This design feature lowers the risk of contaminating the product and makes cleaning more effective.

Precision You Can Trust

Accuracy matters in your critical processes. This electromagnetic flowmeter delivers volumetric flow accuracy up to 0.25% at a 13:1 flow ratio. Even at extended ranges of 40:1, you'll still achieve 0.5% accuracy. These specifications help you maintain tight process control and consistent product quality.

Versatile Connection Options

No installation is the same. This sensor has various sanitary process connections because of that. You'll find the right answer for your system, whether you need IDF connections, Tri-Clamp fittings, or short tubes to weld.

Technical Specifications

Parameter	Specification
Accuracy	Up to 0.25% (13:1 flow ratio), 0.5% (40:1 flow ratio)
Diameter Range	½ - 4 inches (15 - 100 mm)
Inner Lining	PFA material
Electrode Materials	316L stainless steel, nickel alloy, platinum
Process Connections	Tri-Clamp, IDF, DIN 11851, DIN 11864, SMS 1145
Certifications	3-A, EHEDG Type EL, PMO (M-b-350)
Transmitter Compatibility	8700 series, 8712D, 8712C, 8732C, 8742C

Why Choose This Electromagnetic Flow Sensor?

Easy Installation and Maintenance

The stainless steel is light, which makes the fitting easier. You won't need to lift big things or do complicated mounting steps. The compact form retains full usefulness while being able to fit into small areas.

Gaskets used in processes are easy to get to so that they can be inspected and worked on. This function helps you keep the sensor working well by reducing downtime and maintaining peak performance all through its lifetime.

CIP/SIP Compatible Design

Your cleaning processes become more efficient with the Rosemount 8721 Sanitary electromagnetic flowmeter sensor's design. The inner diameter matches your process pipeline perfectly, eliminating step changes that create cleaning challenges. This smooth transition prevents product buildup and ensures thorough cleaning during CIP/SIP cycles.

Unobstructed Flow Path

Parts that move around can break, and they make upkeep more difficult. This sensor gets rid of these issues with its open form. You'll have to spend less on upkeep, and your operations will be more efficient.

The lack of working parts also means that it will work the same way over long periods of time. Your flow readings stay correct even if you don't calibrate or change them often.

Applications and Industries

This sensor excels in various sanitary applications:

Food Processing: Dairy products, beverages, sauces, and liquid ingredients
Pharmaceutical: Drug manufacturing, biotechnology processes
Cosmetics: Liquid formulations and ingredients
Chemical Processing: Sanitary chemical applications

Expert Support and Service

Shaanxi Honglixing Electronic Technology Co., Ltd. offers a full range of expert help for all of your flow measurement needs. Our knowledgeable team knows that working with clean apps can be difficult. We can help you choose the right setup to meet your needs.

To make sure everything works well, we offer professional fitting help and support after a sale. We want you to be completely happy with every part of your flow measuring system.

Packaging and Shipping

Shanxi HLX electronic technology takes extraordinary consideration in bundling the product to guarantee that it arrives at our clients in amazing condition. We use industry-standard bundling materials and techniques to shield the gadget from likely harm during travel. We likewise offer various delivery choices to oblige your particular necessities and inclinations.

product-1-1

Contact Us

Ready to upgrade your flow measurement capabilities? The Rosemount 8721 Sanitary electromagnetic flowmeter sensor offers the reliability, accuracy, and hygiene standards your operations demand.

Contact our technical team at sales01@hlx8.com for detailed specifications, pricing, and application guidance. We'll help you determine the best configuration for your specific needs and ensure seamless integration into your existing systems.

Transform your sanitary flow measurement challenges into operational advantages with this proven electromagnetic flowmeter technology.
