Siemens Pressure Transmitter 7MF4033: Professional Industrial Pressure Measurement Solution

Do you need to get accurate pressure readings in your manufacturing operations? For tough uses, the Siemens Pressure Transmitter 7MF4033 provides great accuracy and longevity. This high-tech pressure sensor measures very precisely, meeting the strict needs of today's industrial processes. This device guarantees consistent and dependable pressure monitoring in a range of work settings. It does so with a strong build and excellent performance. This transmitter gives you the reliable measurements you need to keep chemical processing, power generation, or mechanical engineering processes safe and running smoothly.

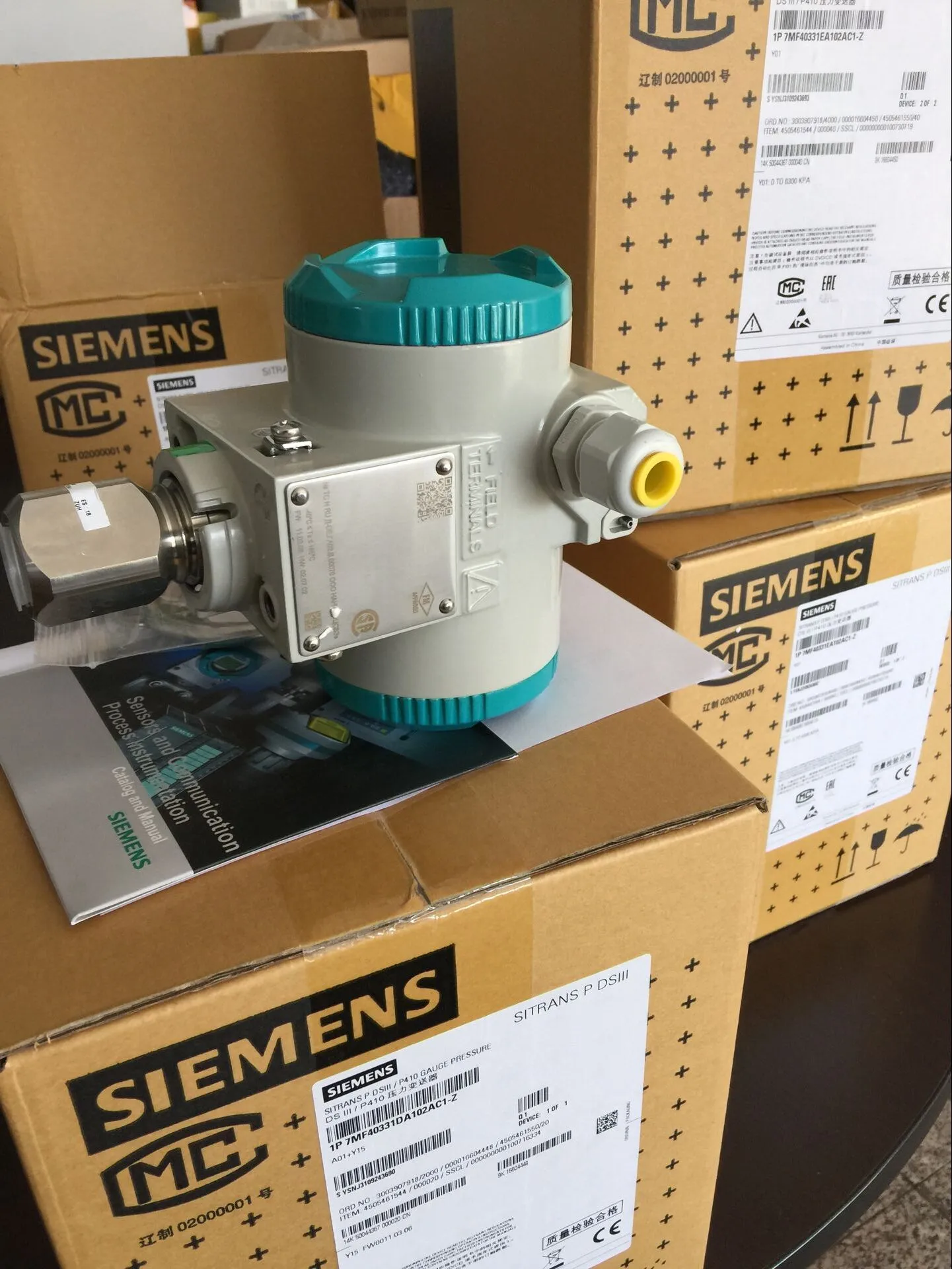

product-1-1

Why Choose This Industrial Pressure Transmitter?

Industrial uses need to be exact and dependable. This pressure measurement device provides both with great performance specs. You can be sure that your processes run with the best accuracy because you get up to 0.075% correct measurements.

The antenna is made of strong stainless steel. This design keeps your investment safe in tough industrial settings. With an IP65 security grade, your gear keeps working even in tough settings.

A lot of different transmission methods make integration easy. HART, PROFIBUS PA, and FF fieldbus connectors all let you join. This ability to change makes sure that it works with the control tools you already have.

Technical Specifications

Parameter	Specification
Measured Medium	Gas, vapor, liquid
Accuracy Class	Up to 0.075% (including hysteresis, repeatability)
Differential Pressure Range	0 - 100 Pa to 3 MPa
Pressure Range	0 - 1 kPa to 70 MPa
Output Signal	4 - 20 mA (HART protocol)
Communication	PROFIBUS PA, FF fieldbus interface
Explosion Protection	ATEX certified for Zone 0/Zone 1
Protection Rating	IP65
Power Supply	24 V DC
Range Ratio	100:1
Long-term Stability	<0.2% FS/year

Key Performance Advantages

Exceptional Measurement Accuracy

Your processes get better with 0.075% accuracy levels. This high accuracy allows for better process control and higher product quality. You can trust the measurement data when you need to make very important decisions.

Versatile Application Range

The wide measurement range covers differential pressures from 100 Pa to 3 MPa. Pressure measurements extend from 1 kPa to 70 MPa. This versatility means one device handles multiple application requirements.

Enhanced Safety Features

ATEX certification ensures safe operation in hazardous environments. You can install this transmitter in Zone 0 or Zone 1 explosive atmospheres. The intrinsic safety design protects your personnel and equipment.

Superior Environmental Resistance

The stainless steel housing withstands corrosive media and harsh conditions. IP65 protection guards against dust and water ingress. Your equipment maintains performance despite challenging environmental factors.

Advanced Communication Capabilities

Multiple fieldbus protocols simplify system integration. HART communication enables remote configuration and diagnostics. You can monitor and adjust parameters without physical access to the device.

Industrial Applications

This pressure sensor works well for a range of industries. It is accurate and resistant to rust, so chemical production plants depend on it. It is useful for power generation centers to have high-temperature skills.

Its stable liquid pressure reading is used in water treatment equipment. Its approvals for explosive atmospheres are important for oil and gas activities. Its many different measurement bands are useful for manufacturing plants.

The device safely handles both acidic and non-corrosive materials. Pressure can be measured in devices that use steam, fluids, or gases. Its strong design makes sure that it works the same way in every application.

Installation and Maintenance Benefits

Simple installation procedures reduce setup time and costs. The compact design fits into existing piping configurations easily. Standard process connections ensure compatibility with your current systems.

Maintenance requirements remain minimal thanks to the robust construction. The Siemens Pressure Transmitter 7MF4033 offers excellent long-term stability with less than 0.2% drift per year. This reliability reduces calibration frequency and maintenance costs.

Local operation through push buttons provides convenient field access. HART handheld communicators enable advanced configuration options. Remote diagnostics capabilities help identify issues before they affect operations.

Why Partner With Shaanxi Honglixing Electronic Technology?

Our specialty is offering industrial automation options in a range of areas. We have a lot of experience with natural gas, fuel, petrochemicals, power creation, and smart building systems. You get full after-sales service and help with technology issues from professionals.

Our team knows that measuring pressure is very important in business processes. We offer goods and solutions that you can count on to meet the needs of your particular purpose. Everything we do is based on making our customers happy.

Packaging and Shipping

Shanxi HLX electronic technology takes extraordinary consideration in bundling the product to guarantee that it arrives at our clients in amazing condition. We use industry-standard bundling materials and techniques to shield the gadget from likely harm during travel. We likewise offer various delivery choices to oblige your particular necessities and inclinations.

product-1-1

Contact Us

Ready to enhance your pressure measurement capabilities with the Siemens Pressure Transmitter 7MF4033? Contact our technical experts at sales01@hlx8.com for detailed specifications and application guidance. We'll help you select the right configuration for your specific requirements and ensure optimal performance in your application.
