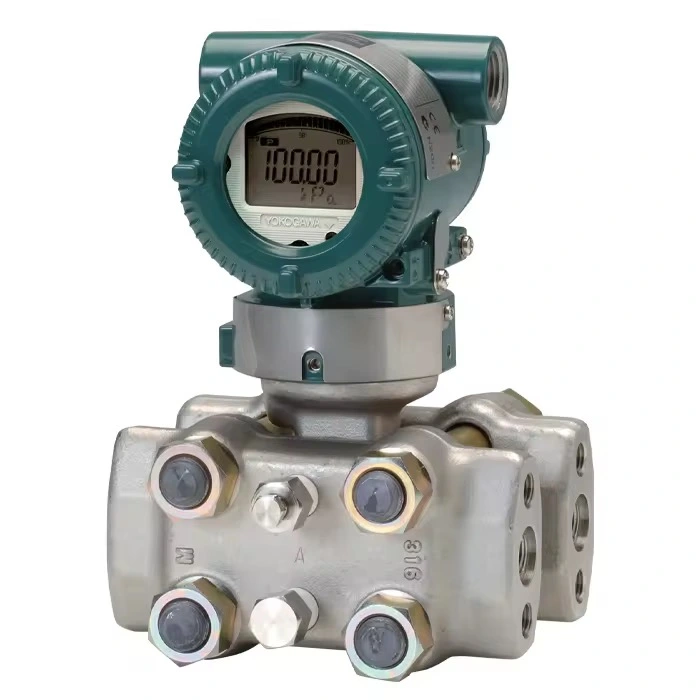

Yokogawa EJA130E High Differential Pressure Transmitter, Superior Industrial Pressure Measurement Solutions for Critical Applications

When you need to measure differential pressure very precisely in your business processes, you need equipment that is always accurate and reliable over time. The Yokogawa EJA130E High Differential Pressure Transmitter is a very advanced sensor that measures flow, level, density, and pressure in liquids, gases, and vapors. This advanced transmitter uses single-crystal silicon resonant sensor technology to turn differential pressure readings into exact 4-20mA DC current outputs. This makes sure that your processes keep meeting the highest performance standards.

product-1-1

Advanced DPharp Digital Sensor Technology

You'll love the way that the EJA130E's groundbreaking DPharp digital sensor sets new standards for measuring in the industrial sector. This digital technology continuously sends frequency signs even when process pressure stays the same, unlike traditional sensors. This means that your system finds sensor failures right away. This stops expensive mistakes that could happen if equipment failures are mixed with real process changes.

The sensor is very stable and accurate because it is made of single-crystal silicon. Your measures stay the same over time, which means you don't have to calibrate it or pay for maintenance as often. You can count on this, which will make your building run more efficiently.

Exceptional Durability and Overpressure Protection

The difficulties in your business setting require strong tools. The EJA130E has a four-bolt pressure retention system with flange seals made of 316L stainless steel coated with Teflon. This building meets ANSI/ISA 12.27.01 approval guidelines for double sealing, which keeps it working for a long time even when conditions are tough.

Overpressure events can break delicate tools and stop production. The transmitters' mechanical design protects against pressure spikes and wrong valve actions in more than one way. The DPharp sensor can handle overpressure hits, and extra mechanical safety features inside the device protect your investment.

Technical Specifications

Parameter	Specification
Measurement Type	Main: Differential Pressure (DP), Auxiliary: Static Pressure (SP)
Reference Accuracy	Main: ±0.055%, Auxiliary: ±0.5%
Long-term Stability	±0.1% URL / 10 years
Maximum Working Pressure	4,500 psi (all diaphragm capsules)
Burst Pressure	19,100 psi (132 MPa)
Overpressure Effect	±0.03% URL
Range Ratio	100:1
Output Signal	4-20mA DC current
Specification Consistency	±3σ (EJX-A series)

Built-in Self-Diagnostic Capabilities

You get the benefit of advanced troubleshooting features on the Yokogawa EJA130E High Differential Pressure Transmitter that keep an eye on how well the device works all the time. The Back-Check unique system does calculations in reverse while sending messages. This checks that the calculations are correct and finds possible problems before they affect your process.

Quick reaction monitoring, remote setting verification, and thorough self-testing procedures are all parts of diagnostics. Your maintenance team gets early alerts about possible issues, which lets them schedule maintenance ahead of time to keep the system from going down unexpectedly.

Safety and Compliance Standards

Your safety requirements are paramount in critical applications. The EJA130E meets IEC 61508:2010 and IEC 61511:2004 safety standards, with independent certification from TÜV Rheinland and EXIDA. A single unit satisfies SIL2 safety requirements, while redundant configurations achieve SIL3 compliance.

This functional safety design eliminates the need for separate production and safety instrumentation. You can meet both operational and safety requirements with one reliable device, simplifying your system architecture and reducing overall costs.

Applications Across Multiple Industries

Your field gains from flexible measuring tools. This differential pressure sensor can be customized to fit your exact needs, whether you are working in petrochemicals, power generation, petroleum refining, natural gas processing, or chemical making.

The device is great at measuring flow when opening plates, venturi tubes, and flow fans are used. Static pressure adjustment makes level reading in tanks and vessels more accurate. For process control and filter monitoring uses, density readings get more accurate.
