Fisher 67C Series Filter Pressure Reducing Valve: Your Complete Solution for Precise Pressure Control

When you need reliable pressure regulation for pneumatic systems, the Fisher 67C Series Filter Pressure Reducing Valve delivers exceptional performance every time. This direct-acting pressure regulator provides continuously controlled pressure to pneumatic controllers, electro-pneumatic instruments, and various industrial applications. You'll find this product perfect for air or gas applications where precision matters most.

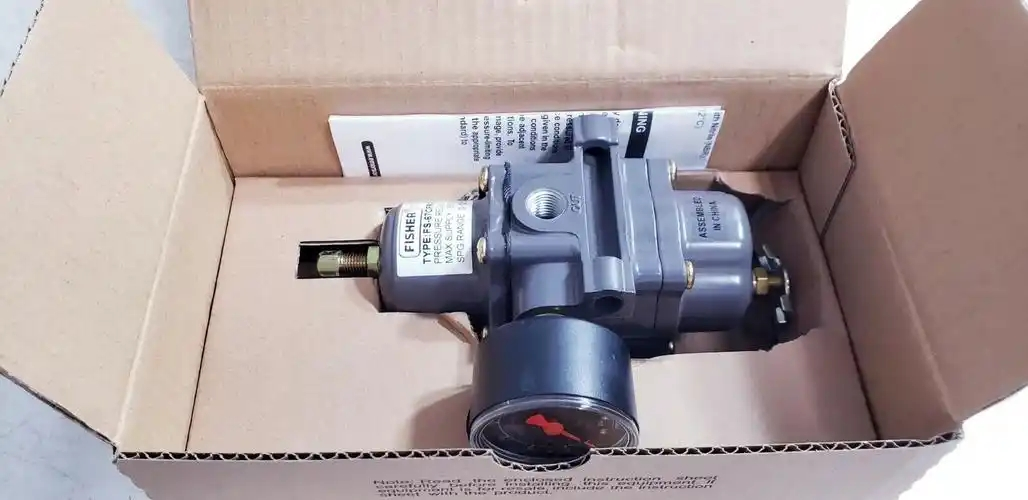

product-1-1

Why Choose Our Fisher 67C Series for Your Applications?

Your industrial work needs tools that always work well under pressure. This small pressure regulator is well-built and has features that make it easy to use. No matter if you're using pneumatic chucks, air pumps, or spray guns, you can count on pressure control that keeps your systems going well.

The smart design lets you put up panels, so it's easy for your repair team to set up. You'll love the small size that doesn't hurt efficiency. The strong build makes sure that it will last a long time, even in tough industrial settings.

Advanced Features That Set This Regulator Apart

Smart Bleed™ Technology

Your safety is our priority. The innovative Smart Bleed™ internal check valve automatically relieves outlet pressure when supply pressure is lost. This feature protects your downstream equipment and personnel from unexpected pressure surges.

Flexible Material Options

Choose the construction that matches your specific needs:

Standard aluminum construction for general applications
Stainless steel variants for corrosive environments
Multiple diaphragm materials for different temperature ranges

Internal Pressure Relief Design

The optional soft valve seat internal pressure relief protects your system from overpressure conditions. This built-in safety feature eliminates the need for external relief valves in many applications.

Technical Specifications

Parameter	Specification
Valve Body Material	Aluminum (67C Series), Stainless Steel (67CS Series)
Port Connection	1/4 NPT
Maximum Inlet Pressure	250 psig/17.2 bar (Standard), 400 psig/27.6 bar (67CS/67CSR)
Emergency Outlet Pressure	Setting value + 50 psi/3.4 bar
Pressure Tapping	Internal
Temperature Range (NBR)	-40 to 180°F (-40 to 82°C)
Temperature Range (FKM)	0 to 300°F (-18 to 149°C)
Temperature Range (VMQ)	-60 to 180°F (-51 to 82°C)
Weight (Standard Models)	1 lb/0.5 kg
Weight (Stainless Models)	2.5-4 lb/1.1-1.8 kg

Available Configurations for Your Specific Needs

Standard Pressure Regulators

67C/67CS: Independent pressure regulation
67CR/67CSR: With soft valve seat internal pressure relief

Filter Combinations

67CF/67CFS: Integrated filter for clean air supply
67CFR/67CFSR: Complete solution with filter and pressure relief

Each configuration of the Fisher 67C Series Filter Pressure Reducing Valve meets different application requirements. You can select the exact model that matches your system specifications and environmental conditions.

Installation and Maintenance Benefits

Your maintenance team will love the straightforward installation process. The panel-mount design simplifies integration into existing control panels. Corrosion-resistant fasteners ensure long-term reliability with minimal maintenance requirements.

The instrument-grade construction provides consistent performance across varying operating conditions. You'll experience stable outlet pressure regulation that improves overall system efficiency and reduces equipment wear.

Industry Applications Where Performance Matters

These controllers are great at overseeing fuel, natural gas, petrochemicals, chemicals, power generation, and building automation systems. Accurate pressure control makes your processes more reliable and safe, which helps your business.

These controllers are very important for air control systems in data centers. The steady performance makes sure that the important parts of the system keep working.

Why Partner With Shaanxi Honglixing Electronic Technology?

We are an approved seller of Emerson Fisher products, so we offer real tools with great expert help. Our skilled team knows how to deal with the special problems your business has. To make sure you pick the right product setup, we offer professional help with applications.

We promise to make our customers happy by offering dependable after-sales service and expert help. You get help from experts that makes your system run better and reduces downtime.

Packaging and Shipping

Shaaxi HLX electronic technology takes extraordinary consideration in bundling the product to guarantee that it arrives at our clients in amazing condition. We use industry-standard bundling materials and techniques to shield the gadget from likely harm during travel. We likewise offer various delivery choices to oblige your particular necessities and inclinations.

product-1-1

Contact Us

Ready to enhance your pressure control capabilities? Our technical team can help you select the optimal Fisher 67C Series Filter Pressure Reducing Valve configuration for your specific requirements. We'll work with you to ensure proper sizing and specification for maximum performance.

Contact our sales team at sales01@hlx8.com for detailed technical consultation and competitive pricing. Let us help you implement the pressure control solution that drives your operational success forward.
