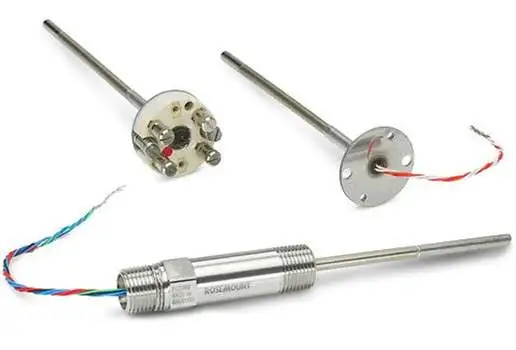

Rosemount ™ 214C Thermal Resistance Temperature Sensor: Precision Temperature Measurement Solution

When you need reliable and accurate temperature measurement in demanding industrial applications, the Rosemount ™ 214C thermal resistance temperature sensor delivers exceptional performance. With its Pt-100 single or dual-element thermal resistance technology, this high-tech sensor lets you keep a close eye on temperatures from −196°C to 600°C (−321°F to 1112°F). You can trust this sensor to meet your most difficult measurement needs.

product-1-1

Why Choose This Temperature Sensor for Your Application?

You need to be accurate and dependable in your business processes. This temperature sensor uses new thin-film and coil design methods to give you the most possible application range. This sensor can be customized to fit your exact needs, whether you work with natural gas, gasoline, petrochemicals, or power generation.

The dual-element design gives you backup for important uses. You can rest easy knowing the monitor has backup measurement capability built right into it. This trait is especially useful in processes where safety is important and watching all the time is necessary.

Key Features That Benefit Your Operations

Advanced Design Technology

You benefit from both thin-film and wound-element options. The thin-film design handles high-vibration environments exceptionally well. If you need maximum precision for dual-element applications, the wound design delivers superior accuracy.

Wide Temperature Coverage

The extensive temperature range from -196°C to 600°C gives you incredible versatility. You can use this single sensor type across multiple applications, reducing inventory complexity and maintenance requirements.

Enhanced Accuracy Options

You can choose between Class A or Class B sensor accuracy based on your precision requirements. For critical measurement points, Class A accuracy ensures you meet the tightest tolerance standards. The included Callendar-Van Dusen constants facilitate precise transmitter-sensor matching.

Technical Specifications

Specification	Details
Temperature Range	-196°C to 600°C (-321°F to 1112°F)
Element Type	Pt-100 single or dual-element RTD
Design Options	Thin-film or wound-element
Lead Configuration	24 AWG with FEP insulation, IEC 60751 color-coded
Response Time	Maximum 10.8 seconds to 50% response (flowing water test)
Vibration Tolerance	0.05°C max drift after 150 hours at 1g (20-500 Hz)
Long-term Stability	±0.15°C max drift after 1,000 hours at max temperature
Insulation Resistance	Minimum 1000 MΩ at 500 VDC (room temperature)
Accuracy Classes	IEC 751 Class A or Class B
Calibration Options	Single-point, custom range, or standard calibration

Applications Where You'll See Outstanding Performance

High-Vibration Environments

You face challenging conditions in many industrial settings with the Rosemount ™ 214C thermal resistance temperature sensor. The thin-film sensor design withstands severe vibration while maintaining measurement accuracy. This makes it perfect for rotating equipment monitoring and mobile applications.

Critical Process Monitoring

You need sensors you can trust when process safety relies on correct temperature readings. The dual-element choice can measure twice, which makes sure that tracking continues even if one part fails.

High-Temperature Applications

You can confidently use this sensor in applications reaching 600°C. The robust construction maintains accuracy and stability even under extreme thermal stress.

Installation Flexibility You Need

Your startup needs change depending on the product. This sensor has different housing and connection choices to make sure it works for your needs. Spring-loaded and small spring-loaded placement types make sure that thermal contact is right and that it's easy to get to for upkeep.

Using the standard IEC 60751 color coding for leads makes installation easier and prevents mistakes in wiring. Your workers can quickly find connections, which cuts down on the time it takes to put things and lowers the risk of making mistakes.

Quality and Support You Can Trust

We at Shaanxi Honglixing Electronic Technology Co., Ltd. understand that you need dependable ways to measure temperature. We are an approved seller of Emerson products, so we offer real sensors with full expert help.

Our team can help you choose the right settings for your needs with professional application advice. We offer continuous technical help to make sure the monitor works well for as long as it is supposed to.

Packaging and Shipping

Shanxi HLX electronic technology takes extraordinary consideration in bundling the product to guarantee that it arrives at our clients in amazing condition. We use industry-standard bundling materials and techniques to shield the gadget from likely harm during travel. We likewise offer various delivery choices to oblige your particular necessities and inclinations.

product-1-1

Contact Us

The Rosemount ™ 214C thermal resistance temperature sensor represents the ideal balance of accuracy, reliability, and application flexibility. Whether you're upgrading existing systems or designing new installations, this sensor delivers the performance you need.

Our experienced application engineers are ready to help you determine the best configuration for your specific requirements. We can guide you through calibration options, housing selections, and installation considerations to ensure optimal performance.

For detailed specifications, pricing, or technical consultation, contact our team at sales01@hlx8.com. We're committed to providing you with reliable industrial control solutions that meet your exact requirements and exceed your performance expectations.
