Rosemount 5300 Level Transmitter - Guided Wave Radar: Precision Measurement for Challenging Applications

Outstanding precision and dependability are provided by the Rosemount 5300 Level Transmitter - Guided wave radar in the most exacting liquid, slurry, and solid measurement applications. This cutting-edge guided wave radar technology offers excellent performance with little maintenance needs. This transmitter provides the accuracy and robustness required for crucial level measurements, regardless of your industry—petrochemicals, power generation, or process.

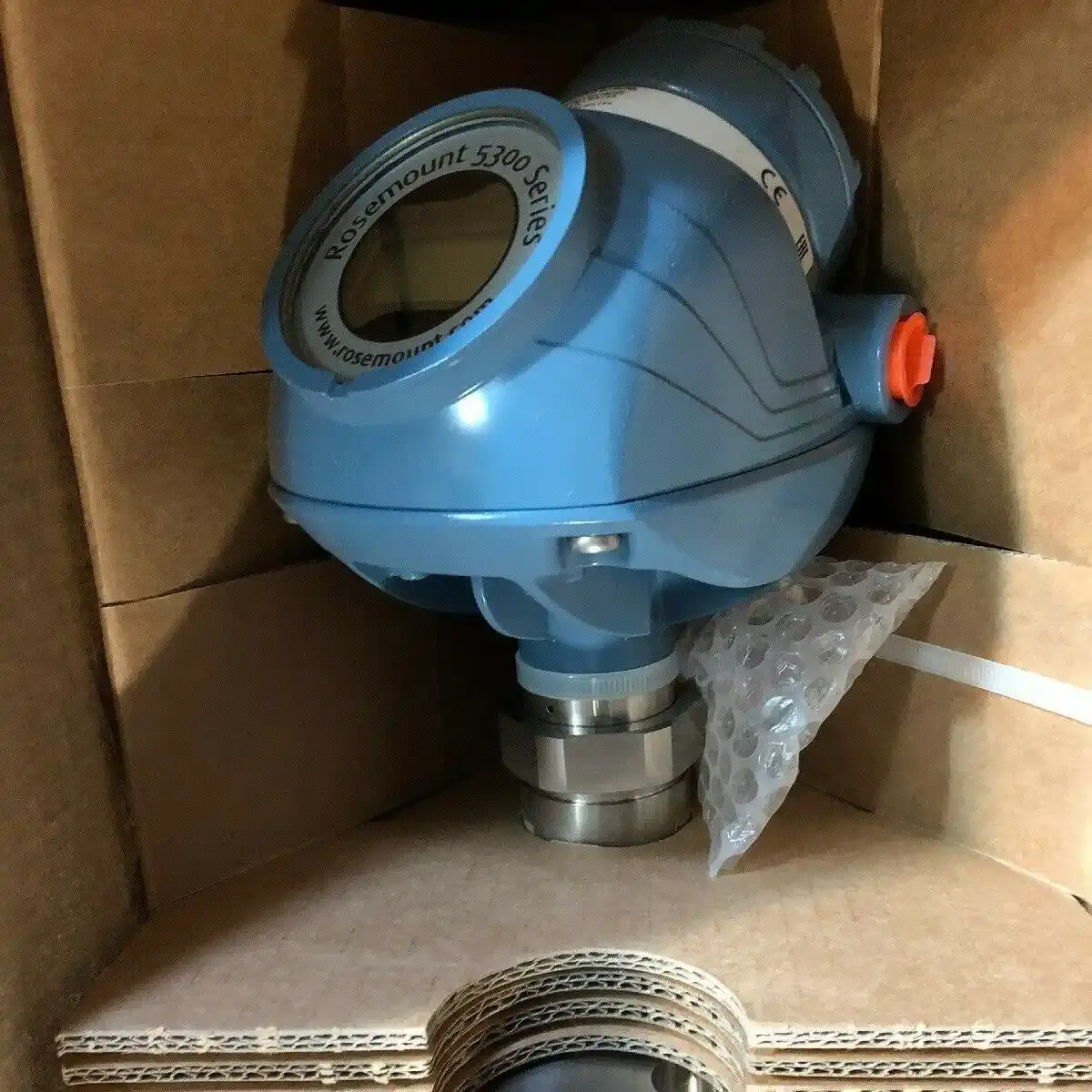

product-1-1

Why Choose the Rosemount 5300 for Your Level Measurement Needs?

In today's tough business world, you need tools that give you steady results and don't take too much time off. There are a number of notable reasons why this guided wave radar emitter stands out.

Exceptional Accuracy and Reliability

You'll get the most exact readings, with a margin of error of just ±3mm. The transmitter works on its own, no matter what the temperature, pressure, or gas changes are. This means you can trust the numbers no matter where you are.

Easy Installation and Maintenance

Installation becomes straightforward since the device requires no calibration. You can mount it quickly and start measurements immediately. The robust construction reduces maintenance needs, saving you both time and operational costs.

Safety-First Design

Your safety applications receive SIL 2 certification compliance. The transmitter meets the highest industry safety standards, making it ideal for critical processes where safety cannot be compromised.

Technical Specifications

Parameter	Specification
Accuracy	± 3 mm (0.12 in.)
Repeatability	± 1 mm (0.04 in.)
Measurement Range	Maximum 50 m (164 ft)
Working Pressure	Full vacuum to 345 bar (5000 psi)
Working Temperature	-196 to 400 °C (-320 to 752 °F)
Communication	4-20 mA/HART®, Foundation™ Fieldbus, Modbus®
Safety Rating	SIL 2 IEC 61508 certified
Diagnostic Features	Enhanced predictive maintenance capabilities
Probe Options	Single/double wire, coaxial, PTFE coated, steam probes
Warranty	Up to 5 years

Advanced Features That Set This Transmitter Apart

Direct Switching Technology

This innovative technology enhances sensitivity while improving reliability. You'll experience expanded measurement ranges that cover more challenging applications than traditional level measurement devices.

Signal Quality Indicators

Forward-looking maintenance becomes possible with built-in signal quality monitoring. You can predict maintenance needs before issues occur, reducing unexpected downtime.

End-of-Probe Detection

The transmitter automatically detects the probe end, increasing measurement reliability. This feature ensures accurate readings even in complex tank geometries.

Dynamic Steam Compensation

For steam applications, dynamic compensation improves thermal efficiency. Your facility benefits from optimized energy usage and better process control.

Ultra-Thin Layer Detection

Peak-in-Peak technology enables detection of extremely thin layers. You can measure interface levels with unprecedented precision, even in challenging separation processes.

Versatile Probe Options for Every Application

The Rosemount 5300 Level Transmitter - Guided wave radar offers multiple probe configurations to match your specific needs:

Hard Single Wire: Perfect for standard liquid applications
Soft Single Wire: Ideal for moving materials and agitated tanks
Hard/Soft Double Wire: Enhanced stability for demanding conditions
Coaxial Probes: Superior performance in low dielectric applications
PTFE Coated Probes: Chemical resistance for corrosive environments
Steam Probes: Specialized design for steam drum applications

Applications Across Industries

This adaptable emitter works well in a range of fields. Its precision in tank sizing and inventory control is crucial for petrochemical plants. It is used by power companies to keep an eye on feedwater and steam drums. It needs to be reliable for reactor and storage tank readings because chemical processors count on it.

Its ability to measure in tough situations gives water treatment plants a boost. Food and drink makers like how it can be easily kept clean. The transmitter meets the needs of your business while continuing to work well.

Enhanced Diagnostics for Predictive Maintenance

Modern factories need smart tools that can tell them how well their machines are working. The advanced diagnostic features help you move from reacting to predictive repair plans. You get real-time information about how well your device is working, which lets you make the best repair plans.

Professional Support and Service

Shaanxi Honglixing Electronic Technology Co., Ltd. knows that you need help from professionals to pick the right level measurement option. Our team offers full professional help for your product from the moment it's created to the moment it's no longer used. We make sure you succeed from the beginning of the installation process to the end of the upkeep.

Packaging and Shipping

Shanxi HLX electronic technology takes extraordinary consideration in bundling the product to guarantee that it arrives at our clients in amazing condition. We use industry-standard bundling materials and techniques to shield the gadget from likely harm during travel. We likewise offer various delivery choices to oblige your particular necessities and inclinations.

product-1-1

Contact Us

Transform your Rosemount 5300 Level Transmitter - Guided wave radar level measurement capabilities with proven guided wave radar technology. Contact our technical experts today to discuss your specific application requirements. We'll help you configure the optimal solution for your facility.

Get in touch: sales01@hlx8.com

Experience the difference that precision level measurement makes in your operations. The Rosemount 5300 delivers the reliability, accuracy, and safety features your facility demands.
