Unlock Precision & Reliability: Yokogawa EJA110E Differential Pressure Transmitter for Process Industries

For operational success and safety compliance in today's tough process industries, accurate pressure measurement is a must. The Yokogawa EJA110E differential pressure transmitter is a big step forward in measurement technology. It offers unmatched accuracy and dependability in chemical, oil and gas, and power generation settings. This high-tech instrumentation solution has a strong build and uses single-crystal silicon resonant sensor technology. It gives procurement and process engineers a reliable measurement platform that improves operational efficiency while lowering costs and risks of downtime.

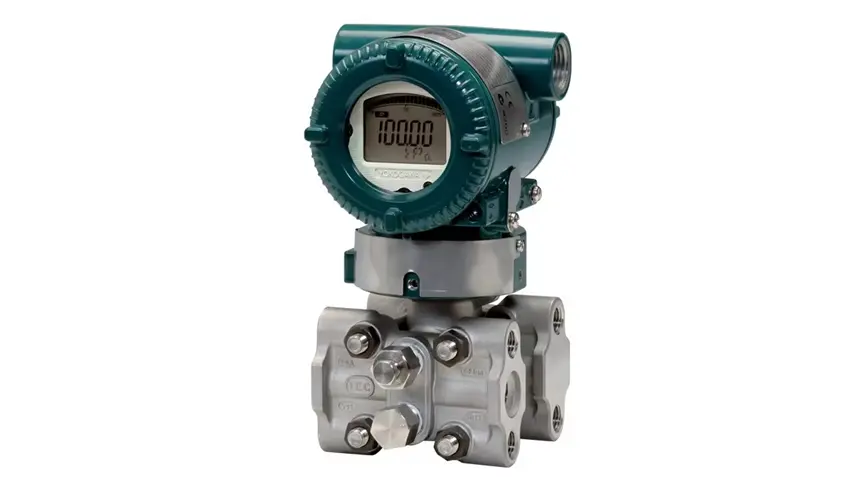

Understanding the Yokogawa EJA110E Differential Pressure Transmitter

Process measurement accuracy directly impacts production quality, safety margins, and operational profitability. The Yokogawa EJA110E differential pressure transmitter addresses these critical requirements through advanced engineering and proven sensor technology.

Core Technical Specifications and Sensor Technology

EJA110E strain gauges use single-crystal silicon resonant sensor technology, a major improvement. This novel method provides precise measurement stability and accuracy in various operating circumstances. The transmitter transforms differential pressure measurements into 4-20mA DC current signals for easy integration with control and data collecting systems.

Key technical specs show the transmitter's excellent performance. Main variable differential pressure measuring has ±0.055% reference accuracy, while auxiliary static pressure monitoring has ±0.5% accuracy. Process feedback and control loop optimisation are fast with differential pressure response times of 90 milliseconds and static pressure of 360 milliseconds.

Operation and Hardware Design

DPharp digital sensors generate frequency signals even in static pressure. To avoid misinterpreting sensor failures as process fluctuations, this unique feature detects faults immediately. Real-time reverse computations by the unique Back-Check self-verification system verify signal processing accuracy and measurement reliability.

The major differential pressure variable has 100:1 range flexibility, meeting diverse process needs without compromising precision. Stability of ±0.1% URL over 10 years ensures constant performance throughout the instrument lifecycle. Overpressure effects are low at ±0.03% URL, ensuring measurement integrity during process disruptions.

Practical Use Cases

The EJA110E's versatility in measurement applications benefits process industries. For custody transfer and process control, orifice plates, venturi tubes, and flow nozzles measure flow accurately. Inventory management and safety monitoring are dependable using tank, vessel, and reactor level measurement. Density measurement aids process optimisation and product quality control.

The transmitter performs well in harsh situations with temperature variations, vibration, and corrosive fluids. Rugged structure and corrosion-resistant materials assist chemical processing. Oil and gas operations depend on the transmitter's accuracy under harsh conditions and remote placement.

Advantages and Performance Features of Yokogawa EJA110E

Modern process operations require measurement systems that minimise maintenance and operational disturbances while delivering consistent performance. Innovative design and advanced diagnostics meet these needs in the Yokogawa EJA110E differential pressure transmitter.

Accuracy and Stability Benefits

The transmitter's precision improves process control and reduces variability. Manufacturing plants improve product quality, waste reduction, and raw material use. The low drift allows longer calibration intervals, saving maintenance expenses and operational interruptions.

Long-term stability minimises the need for periodic recalibration, especially in distant or dangerous sites with limited maintenance access. Process engineers can rely on consistent measurement performance throughout the instrument's life for predictive maintenance and operational planning.

Advanced self-diagnosis and monitoring

Diagnostic capabilities provide early detection of potential errors before they affect process operations. The constant self-monitoring system detects sensor degradation, wiring issues, and environmental conditions that could impair measurement accuracy. Diagnostic notifications help maintenance teams fix issues with targeted information.

By switching maintenance from reactive to predictive, these diagnostic features prevent unplanned downtime. Process operators trust measurement reliability, enabling important decision-making and safety system integration. The detailed diagnostic information aids regulatory compliance and audits.

Diagnose and calibrate

Maintenance staff benefit from explicit troubleshooting and calibration techniques that maximise instrument uptime. Routine field maintenance requires less skills and equipment due to the transmitter's design. Remote configuration allows parameter alterations without instrument access, which is useful in dangerous or hard-to-reach areas.

Standard calibration ensures measurement accuracy and quality management system compliance. Stable sensor technology lowers calibration drift, increasing adjustment intervals. Stability lowers plant measurement infrastructure maintenance costs and improves operational efficiency.

Choosing the Right Differential Pressure Transmitter: Yokogawa EJA110E vs Competitors

Performance parameters, application requirements, and long-term operational factors must be considered while choosing differential pressure measurement technology. Understanding option differences promotes appropriate solution selection for process demands.

Yokogawa EJA Series Model Comparison

The EJA110E is unique in Yokogawa's transmitter lineup because it targets differential pressure applications. The EJA120E measures absolute pressure with similar precision and stability for gauge or absolute pressure monitoring applications. The EJA130E meets absolute and gauge pressure requirements with improved process rangeability.

The EJA series emphasises reliability, precision, and diagnostics in all models. The EJA110E's differential pressure specialisation optimises flow, level, and density measurement. Process engineers can use this specialisation to measure better than general-purpose pressure transmitters.

Compared to Industry Leaders

Compared to Emerson Rosemount, the Yokogawa EJA110E differential pressure transmitter has better long-term stability and diagnostics. DPharp sensor technology does continuous self-monitoring better than many competitors' strain gauges. This technological edge reduces maintenance and boosts operational trust.

Sensor design and mechanical protection measures make the EJA110E's overpressure protection superior than competitors. The four-bolt pressure retention system and double sealing construction make it more durable than industry standards. Due to reduced maintenance and prolonged service life, these features lower TCO.

Selection Criteria for Best Performance

Technical performance evaluation should include accuracy, response time, and operational circumstances. The EJA110E's accuracy is ideal for applications where measurement precision affects product quality or safety. Fast response times help dynamic process control applications maintain stability with rapid feedback.

Initial purchase, installation, maintenance, and service life comprise total cost of ownership. Through prolonged calibration intervals and predictive maintenance, the EJA110E's stability and diagnostics lower operational expenses. Supplier dependability and technical support ensure long-term operational success and troubleshooting.

Procurement Guide for Yokogawa EJA110E Differential Pressure Transmitter

For successful instrument purchase and implementation, global procurement teams need clear sourcing, supplier evaluation, and logistical guidelines. Understanding these aspects lets you buy confidently and finish projects.

Authorised Supplier and Distribution Networks

Authorised distributors and resellers handle, store, and support genuine Yokogawa products. Authorised partners guarantee product authenticity, warranty coverage, and factory technical assistance. The procurement team should verify supplier authorisation to avoid counterfeit products that threaten safety and performance.

Local technical support from regional distribution networks speeds troubleshooting and maintenance. Technical staff at authorised distributors are trained in Yokogawa EJA110E differential pressure transmitter installation, configuration, and troubleshooting. Local experience helps during commissioning, startup, and operational support.

Logistics & Lead Time

International purchase includes cautious lead times, shipping needs, and customs documentation. Standard delivery times depend on configuration, quantity, and area inventories. Special configurations or certifications may delay delivery, requiring early planning for project timeline compliance.

Transporting instruments requires proper packaging, temperature management, and foreign customs documentation. Transporting instruments properly prevents damage that could impact calibration accuracy or mechanical function.

Warranty and Support

Comprehensive warranty coverage includes manufacturer support and manufacturing failure protection. Procurement teams assess total ownership costs and risk by understanding warranty terms, coverage limitations, and claim procedures. Critical applications or remote installations may benefit from extended warranties.

After-sales technical support covers installation, commissioning, and troubleshooting throughout the instrument lifecycle. Trained technical specialists speed problem resolution and reduce operating disruptions. Installation documents, configuration guides, and maintenance procedures aid operations.

H.L.X AUTOMATION: Your Trusted Partner for Industrial Instrumentation Solutions

Professional instrumentation procurement involves suppliers who understand technological requirements and worldwide logistics concerns. We assist project execution and long-term operational success with strong technical experience and broad service capabilities.

Company expertise and global capabilities

H.L.X AUTOMATION imports Yokogawa, Emerson Rosemount, Honeywell, ABB, and Siemens industrial automation. Our expertise with these top manufacturers provides product selection, configuration help, and technical support throughout the project. We offer skilled guidance and troubleshooting that generalist suppliers cannot match due to our specialisation.

Our global procurement network and supplier partnerships guarantee competitive pricing and on-time delivery. We keep strategic inventory levels for popular items and offer entire product catalogues for specialised needs. This availability and breadth serves immediate replacement and planned project demands.

Technical Support and Value-Added Services

We provide application engineering, installation support, and commissioning in addition to product delivery. Our technical team has over ten years of pressure measurement experience in many process sectors. We advise on instrument selection, installation, and troubleshooting due to our knowledge.

Instrument performance is optimised by calibration and maintenance throughout its lifecycle. For calibration and repair, we offer field service and factory return. Our warranty and replacement policies prevent unforeseen breakdowns and minimise operating disruptions with fast resolution.

Focus on Customers and Quality

Long-term partnerships based on reliability, responsiveness, and technical expertise are our customer service philosophy. We know measurement reliability and supplier support are essential for process success. In every client engagement, we strive for product quality, technical accuracy, and service excellence.

All supplied products meet original manufacturer specifications and certifications through quality assurance. To preserve product integrity from production to installation, we maintain correct storage, handling, and documentation. Customer investments are protected and performance is ideal from day one with this quality focus.

Conclusion

The Yokogawa Yokogawa EJA110E differential pressure transmitter advances differential pressure monitoring technology with high accuracy, robust design, and improved diagnostics. Its innovative DPharp sensor technology and full self-monitoring capabilities offer process industries reliable measurement solutions that save maintenance costs and improve operational efficiency. The transmitter is suited for difficult applications in chemical, oil & gas, and power generation industries because to its high precision of 0.055% and 100:1 rangeability. With experienced suppliers like H.L.X AUTOMATION, customers get excellent instrumentation and extensive technical support for long-term operational success.

FAQ

1. What are the main EJA110E transmitter specs?

With a 100:1 range ratio, the EJA110E provides ±0.055% reference accuracy for differential pressure measurements. Main variable response time is 90 ms, with long-term stability of ±0.1% URL over ten years. The transmitter outputs 4-20mA DC signals and monitors static pressure with ±0.5% accuracy.

2. How does DPharp sensor technology boost reliability?

Since the DPharp digital sensor outputs frequency signals even in static settings, sensor faults can be detected immediately. As process changes, sensor faults are not misinterpreted, improving system reliability and eliminating false alarms that could disrupt operations.

3. What safety certifications does the EJA110E have?

The transmitter fulfils IEC 61508:2010 and IEC 61511:2004 functional safety standards with SIL2 for single units and SIL3 for redundant systems. TÜV Rheinland and EXIDA certifications verify performance and reliability promises, ensuring international safety.

Get Precise, Reliable Measurement Solutions Today

H.L.X AUTOMATION stands ready to support your instrumentation needs with authentic Yokogawa Yokogawa EJA110E differential pressure transmitter High-performance Differential Pressure Transmitter solutions and expert technical guidance. As a trusted supplier specializing in premium industrial automation products, we offer competitive pricing, reliable delivery, and comprehensive technical support for your pressure measurement requirements. Our experienced team provides personalized consultations to ensure optimal instrument selection and configuration for your specific applications. Contact us at sales01@hlx8.com to discuss your differential pressure measurement needs and discover how our expertise can enhance your process operations through precision instrumentation solutions.
