Fisher DVC6200 Valve Positioner: Key Features, Applications, and Buying Guide for Industrial Users

The Fisher Valve Positioner DVC6200 is one of the most important pieces of modern industrial automation technology. It provides extremely accurate valve control that lets equipment work more closely to setpoints than other options. This high-tech electropneumatic valve positioner has both HART communication and strong diagnostic features. This makes it an important part for process businesses that want to improve product quality and operational reliability. With a wide range of safety certifications, such as ATEX, FM, and CSA, the DVC6200 meets a wide range of industrial needs and can be easily integrated into current control systems in many different areas.

Understanding the Fisher DVC6200 Valve Positioner

How things work and the core technology

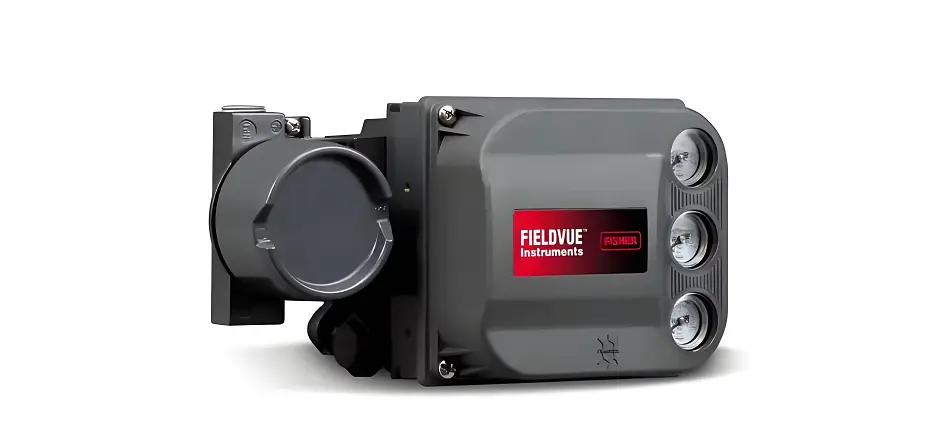

The Fisher FIELDVUE DVC6200 uses advanced electropneumatic principles that change how accurate valve positioning is in industrial settings. This smart valve positioner takes 4-20 mA HART signals and turns them into exact pneumatic outputs. This lets control valves get into the best position with the least amount of deviation from setpoints that have been instructed. The gadget uses high-performance non-contact feedback technology that gets rid of physical links. This keeps parts from wearing out and greatly increases the device's useful life.

The positioner's advanced control methods let it respond quickly to changes in steps while keeping high accuracy even when setpoints are slightly off. This dual capability guarantees both dynamic responsiveness and steady-state accuracy, which are very useful in process control settings where consistent valve positioning is important for the quality of the product.

Technical Details and Measures of Performance

The DVC6200 can be used in a wide range of workplace settings thanks to its key technical specs. The biggest pressure that the device can let out is 145 psig, and it can work with a number of different source media, such as air, natural gas, and nitrogen. Standard and high-temperature environments can be used with the operating temperature ranges, and the integrated installation design makes mounting easier and takes up less room.

The positioner can be used for flow, pressure, temperature, and level control, among other process control tasks. Its local power supply setup means it doesn't need to connect to external power sources. This makes the system more reliable and makes installation easier. Digital communication using the HART protocol lets data flow both ways, making it easier to watch and change settings from afar without having to go to the field.

Certifications for safety and environmental compliance

Safety is a very important thing to think about when buying industrial valve positioners, and the DVC6200 does a great job of meeting all of these requirements. Major safety groups, such as CSA, FM, ATEX, IECEx, CUTR, Peso, KGS, INMETRO, NEPSI, and TIIS, have approved the device. These certifications cover a range of safety ideas, such as flameproof, intrinsically safe, FISCO, N-Type, fireproof, and non-flammable designs.

Lloyd's Register, the French Classification Society, DNV, and ABS all offer specialised ship certifications that are useful for marine uses. With this wide range of certifications, the product can be used in almost any industrial setting and still meet local and foreign safety standards.

Comparing Fisher DVC6200 with Market Alternatives

Digital Enhancement Comparison of DVC6200 and DVC6200e

When you look at the normal DVC6200 and its improved version, the DVC6200e, you can see that they have very different digital and software features. Both devices are great at positioning valves, but the DVC6200e has more advanced diagnostic algorithms and better communication features that make asset management plans more complex.

The improved version has more monitoring tools that let you plan maintenance ahead of time and look at performance trends. When it comes to important process applications, where unplanned downtime can cost a lot of money, these features are especially useful. But the basic Fisher Valve Positioner DVC6200 is still the best choice for situations where proven dependability and low cost are more important than advanced digital features.

Positioning yourself to compete with leaders in your field

A study of the market shows that the DVC6200 is more affordable than products from Yokogawa and other well-known brands. For better environmental resistance, the Fisher device has fully encapsulated electrical parts that can handle vibration, high temperatures, and corrosive atmospheres better than many other options.

The modular design of the DVC6200 makes it possible to change parts without messing up field wiring or pneumatic connections. This gives it another competitive edge: integration flexibility. This way of thinking about design makes maintenance easier and keeps service activities from stopping too often. These are two things that help make the total cost of ownership lower than with competing goods.

Criteria for Choosing the Best Valve Positioner

Valve positioners should be judged by procurement teams based on how accurate they need to be, the environment, how hard they are to integrate, and how much maintenance they will need in the long run. The DVC6200 is great for tasks that need high precision, strong resistance to harsh environments, and the ability to do diagnostics.

The initial purchase price, installation costs, ongoing maintenance needs, and expected operating lifespan should all be included in the cost analysis. The modular design and full diagnostic features of the DVC6200 often lead to lower total ownership costs, even though the original investment may be higher than with basic alternatives.

Comprehensive Buying Guide for Fisher DVC6200

How to Buy Things and Things to Think About in the Supply Chain

To successfully purchase a DVC6200, you need to know about authorised delivery networks and how the supply chain works. Authorised distributors sell original goods that come with full warranties and technical support to make sure they work perfectly and meet the manufacturer's requirements. When you buy in bulk, you can usually get better prices and faster delivery times for big jobs.

Lead times depend on the configuration needed and the state of the market. Usually, they last between a few weeks and longer for more specialised setups. Planning procurement efforts well ahead of time of what the project needs helps avoid delays and makes sure that there are enough technical support resources during the installation and commissioning phases.

Models of pricing and warranty coverage

The price of the DVC6200 is based on its advanced features and wide range of certifications. Standard setups are priced competitively in the premium valve positioner market segment, while variations designed for harsh conditions or specific uses are priced more highly.

The warranty covers both problems with the way the product was made and promises of good performance, so you can be sure that it will work well for a long time. Service agreements and choices for longer warranties offer extra protection for important applications that can't be down for long periods of time.

Original parts and help with maintenance

Genuine replacement parts and skilled technical support are needed to keep the DVC6200 running at its best. Authorised service providers keep an inventory of important parts and know the specifics of how to do repair the right way. Following the manufacturer's instructions for regular maintenance makes sure that the gadget lasts as long as possible and continues to meet safety standards.

Technical support services include advice before the sale, help with installation, problems, and suggestions for improving performance. During the initial deployment and for as long as the gadget is in use, these services are very helpful.

Applications and Industrial Use Cases of Fisher DVC6200

Uses in the process industry

There are many process businesses that use the Fisher Valve Positioner DVC6200, such as oil and gas, chemical processing, power generation, and pharmaceutical manufacturing. Positioners like the Fisher Valve Positioner DVC6200 are used in refineries to manage important process factors like temperature, pressure, and flow rates in distillation columns, reactors, and separation units. The device's ability to keep exact control even when process conditions change makes sure that the quality of the product stays the same and that the operation runs smoothly.

The DVC6200 is good for chemical processing plants because it can work in harsh conditions and adapt quickly to changes in the process. The positioner's diagnostic features let you find valve issues early, before they affect output. This helps with predictive maintenance plans that keep unplanned shutdowns to a minimum.

Connecting to systems that manage digital assets

Digital asset management methods that use real-time data to improve operations are being used more and more in modern industrial sites. The DVC6200 can communicate with plant-wide digital systems using HART, which makes it easy to connect and gives useful practical data and diagnostic information to central control rooms.

The positioner's ability to provide continuous performance monitoring and predictive maintenance information helps projects that use Industry 4.0. This data connection helps advanced analytics programs make decisions based on data that improve process performance and lower maintenance costs.

Case studies and ways to improve performance

The DVC6200 has an effect on process speed and operational efficiency, as shown by real-life examples. A big petrochemical plant said that upgrading key control loops with DVC6200 positioners made the consistency of their product yield 15% better. The more accurate control made the process less variable and let it run closer to its ideal setpoints.

Implementing the DVC6200 has made a big difference in the efficiency and pollution control of power generation uses. The fast reaction time and diagnostic features of the device help meet strict environmental standards while also improving fuel economy and lowering maintenance costs.

Company Introduction and Product Service Information

High-quality solutions for industrial automation from H.L.X. Automation

The H.L.X AUTOMATION brand is used by Shanxi Honglixing Electronic Technology Co. LTD. They specialise in high-end imported industrial automation goods from well-known companies like Emerson Rosemount, Yokogawa, E+H, Fisher, Honeywell, ABB, Siemens, and Azbil. We have a wide range of products, including flow meters, pressure transmitters, temperature transmitters, and valve positioners. We are especially good at Fisher valve placement technology.

Our company's goal says to build lasting relationships through honest service, quality-driven survival strategies, technology-enhanced development, growth based on integrity, and benefit creation that is service-oriented. This attitude guides how we deal with customers and business partners all over the world.

Technical know-how and customer service

Our technical and after-sales engineering teams have worked in this field for more than ten years, which lets us offer excellent product and technical support services. This knowledge comes in very handy when putting together complicated valve placement systems like the DVC6200 in tough industrial settings.

We promise to fix or replace any product that is still under protection. This gives you peace of mind about your business and lowers the risk of downtime. Our dedication to customer satisfaction goes beyond the original sale and includes full support throughout the entire lifecycle of the product.

Conclusion

The Fisher Valve Positioner DVC6200 is a high-tech option for controlling valves in industrial settings that need the highest levels of accuracy, dependability, and diagnostic power. It can be used in a wide range of process industries thanks to its many safety certifications, ability to withstand harsh environments, and improved communication features. The modular design of the gadget and its non-contact feedback technology make it easier to maintain and last longer. Customers get real goods, full technical support, and competitive pricing when they buy from authorised channels like H.L.X AUTOMATION. This results in a lower total cost of ownership.

Frequently Asked Questions

1. What are the most important steps for setting up the Fisher DVC6200?

Setting up pneumatic supply connections, checking the integrity of electrical signals, and running auto-calibration processes through HART communication are all parts of the calibration process. The gadget can self-calibrate, which makes this process easier and makes sure that it works perfectly across the whole operating range.

2. What makes the DVC6200 better than analogue valve positioners?

Digital communication is better than analogue communication because it allows for remote monitoring, diagnostics, and accurate control algorithms. The gadget gives real-time performance information and repair tips that you can't get from regular analogue positioners.

3. What are some usual ways to fix problems with the DVC6200?

Problems with the pneumatic feed, electrical connections, or calibration drift are common problems. The device's diagnostic features can automatically find most issues, and HART transmission lets problems be fixed and settings changed from afar, without having to go to the field.

Partner with H.L.X AUTOMATION for Your Fisher Valve Positioner DVC6200 Needs

H.L.X AUTOMATION stands ready to support your industrial automation requirements with genuine Fisher Valve Positioner DVC6200 units backed by comprehensive technical expertise and competitive pricing. As an established Fisher Valve Positioner DVC6200 supplier, we provide original products with guaranteed authenticity, fastest delivery times, and exceptional after-sales support. Our experienced team offers personalized consultations to ensure optimal product selection for your specific applications. Contact our sales team at sales01@hlx8.com for detailed quotations, technical specifications, and delivery scheduling. Experience the difference that quality products and professional service make in your industrial operations.
